Fastrack Nurse call system
Patient Care is of utmost priority of the hospitals and apart from reliable Nurse Call System which connects patient with Nurses and Doctors for help, there is a significant demand for better quality of service from the basic requirements of ensuring a positive response from Nurse Station when called by the patient.
To meet the growing demand in healthcare and to amplify experience of patients, Fastrack Nurse Call System has enhanced features which provide computer connectivity to enable generation of management information reports.
ENHANCED FEATURES
- Call Escalation if pending for more than per-configured duration
- Multicolour Door Indicator to show “Patient under Care” status
- Multicolour LED to show various call status at patient end
- Blue Alerts code for Indication provision
- Call Description with room nos. indicator
- Emergency Provision
- Configurable Voice Module-to set voice level according to four different time slots
- Nurse Station Display with acknowledgment message like nurse presence in room
- Multiple Colour Call Display to allow duplication of information in corridors
- Configurable System to suit variety of hospital requirements
- Computer Connectivity allows MIS Report & Pictorial Graph – Call Density, Average Response Time, Escalated Call Record, Call Profile.
- Optional Equipment Alarm interface module for conveying Medical Equipment Alarm to the Nurse’s Station Automatically.
Fastrack NCS is an audio –visual call system with a unique three colour lamp feature, highly modular configured to meet the need of all types of hospitals. They are economical, safe and easy to operate at any size of hospital and nursing homes. They can be operated on PC with minimum configuration.
SPECIFICATIONS
There are three buttons on it.
- Power Button : Pressing this for long time (approximately 3 sec) turns the device ON or OFF
- Mute Button: It is for acknowledging a call from patient. It will make the flashing window steady and also silences the voice module until a call is cleared.
- Test Button: On pressing the button it will flash all the windows and will announce "Attention, Patient calling" to make sure that the device is working fine.
TECHNICAL SPECIFICATIONS
Display windows
LCD Display : 320x240 pixels.
Dimension : 255WX107HX2050mm
Indicators : Flashing 5mm LED to indicate NCS is activate.
Power : 230 V AC +/- 10%, 50Hz, 15 watts
Module & station
NCS SYSTEM MODULE
The System Configuration comprises a Nurse Station LCD (NS_LCD) at the nurse - station countertop. This Display console is connected through cable to every patient bed assigned to the nurse station.

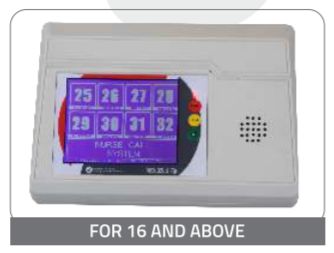

NURSE STATION LCD (NS-LCD)
The central console with the necessary displays and buttons is housed in a dust and water protected cabinet with an Acrylic PVC panel. It has the following features.
SPECIFICATIONS
- Capacity up to 64 lines.
- Electronic digital bad number annunciation displays.
- Speaker for audible voice alert.
- Periodic reminder about audible voice alert.
- Pressing the power Button for long time (approximately 3 sec.) to turn device ON or OFF.
- Distinctive displays for normal calls, emergency & nurse-presence.
- Single acknowledgment button for calls from all beds (Mute button).
- Weight is approx. 1.5 kg.
- LCD Display: 320X240 pixels.
- Dimensions 255 mm. in Width, 107 mm. Height & 205 mm. in Depth (255X107X205).
- Flashing 5 mm. LED to indicate NCS is in active.

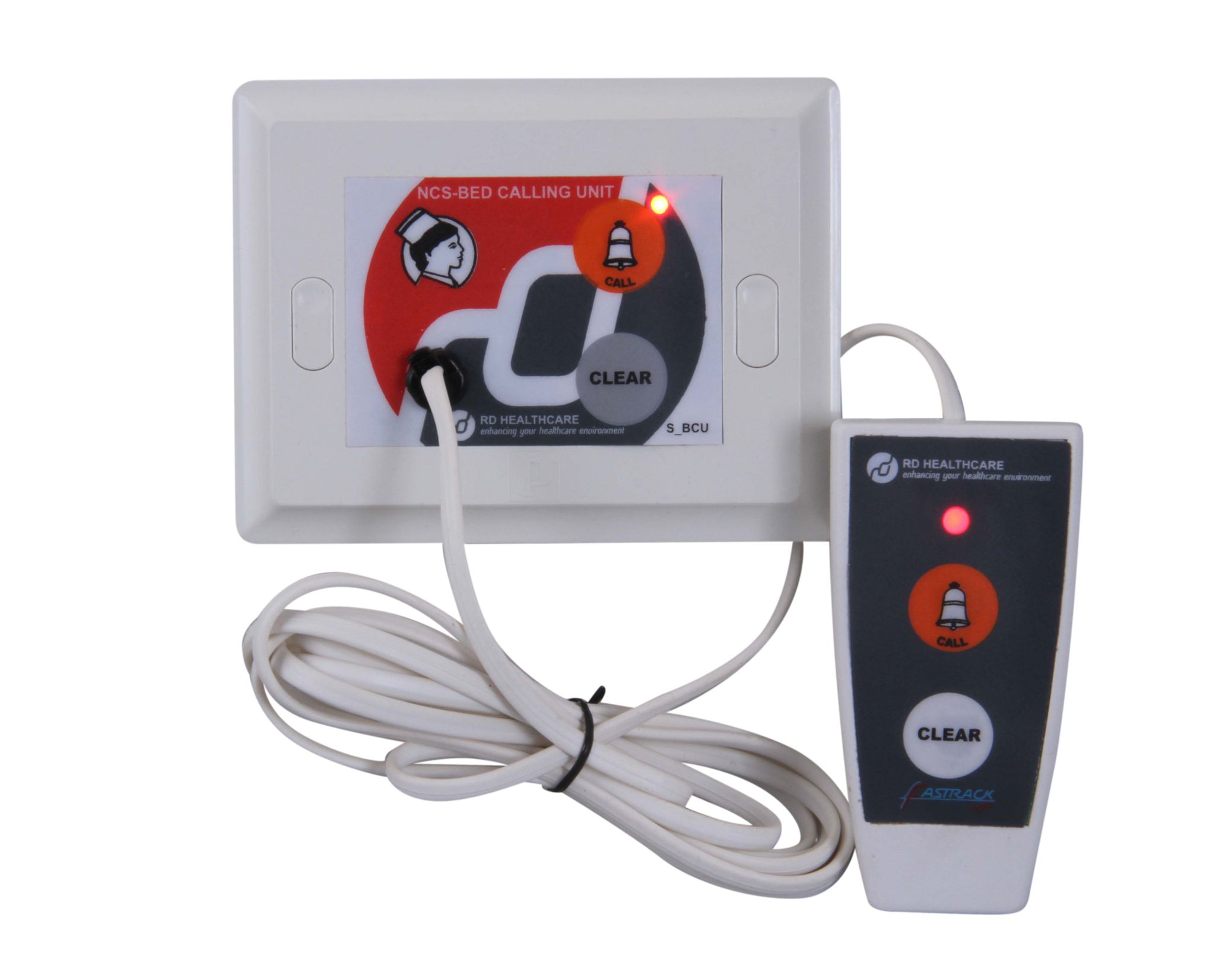

BED CALLING UNIT (BCU)

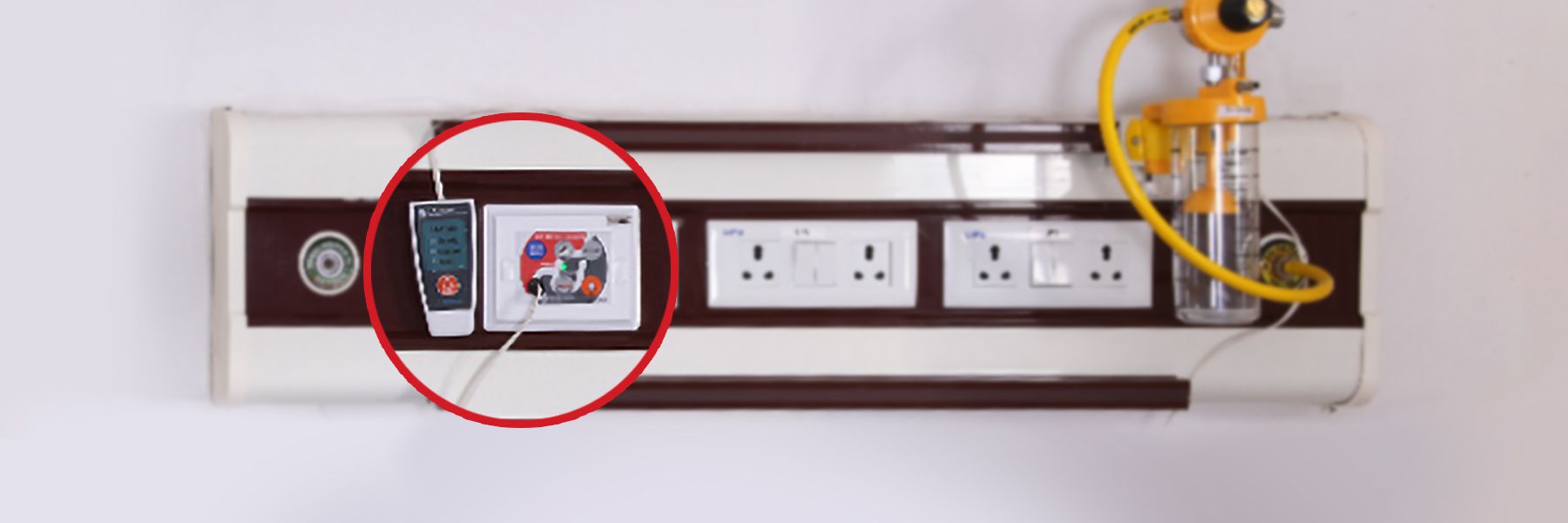

- Flush mountable on wall or bed-head panel.
- One solid state LED used as call status indicators
- Single reset button of study micro-switch or membrane switch construction
- Epoxy-polyester powder coated MS Enclosure panel with functions marked
- Mating connectors or brass screw terminals for incoming wires
- Uses a modular electrical switch outlet

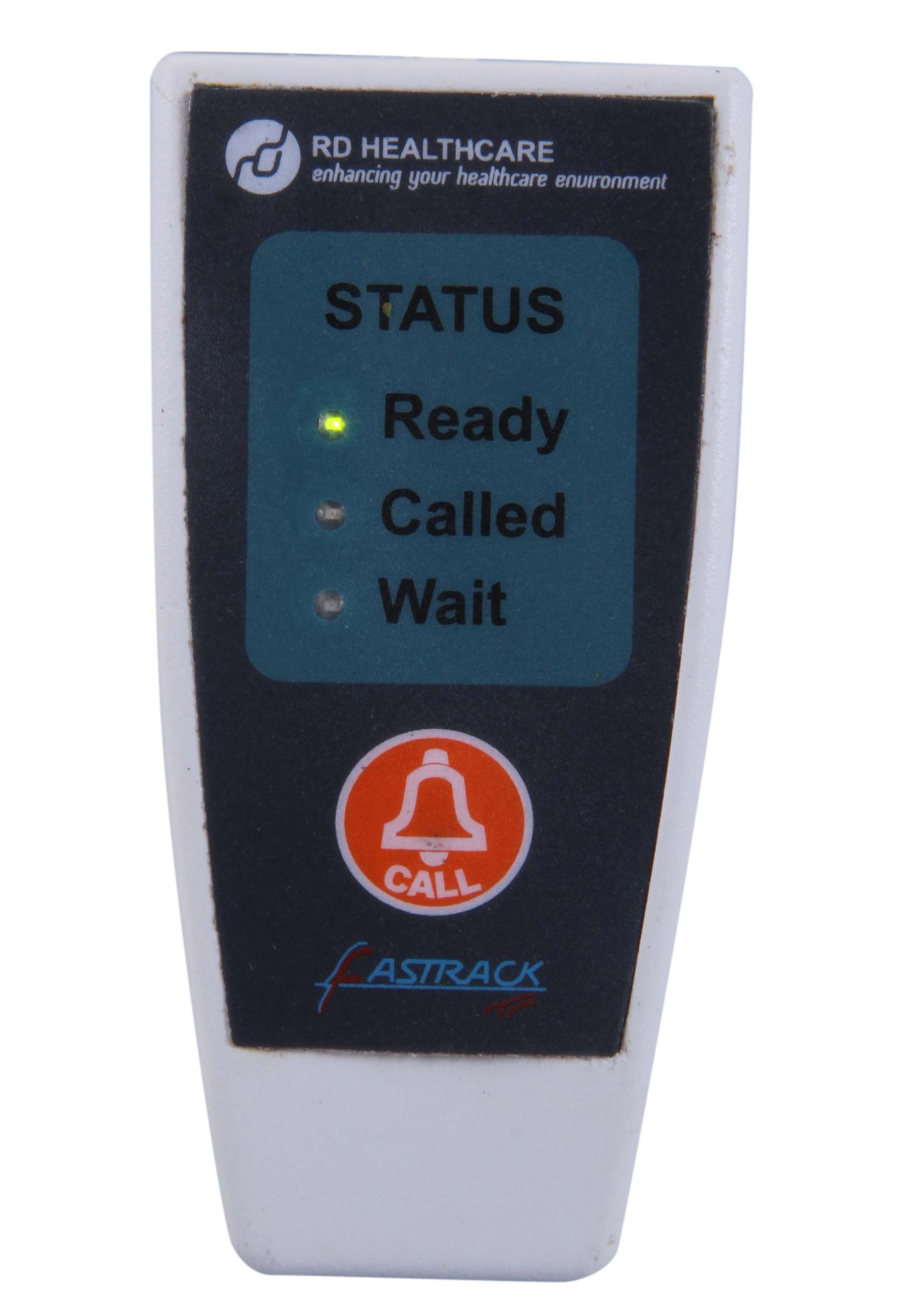

HANDSET UNIT
- Housed in high impact resistant, fluid protected plastic enclosure
- Recessed buttons for call initiation
- Flexible Spring cord, with a keypad having one feature touch key for call and one indicating LED

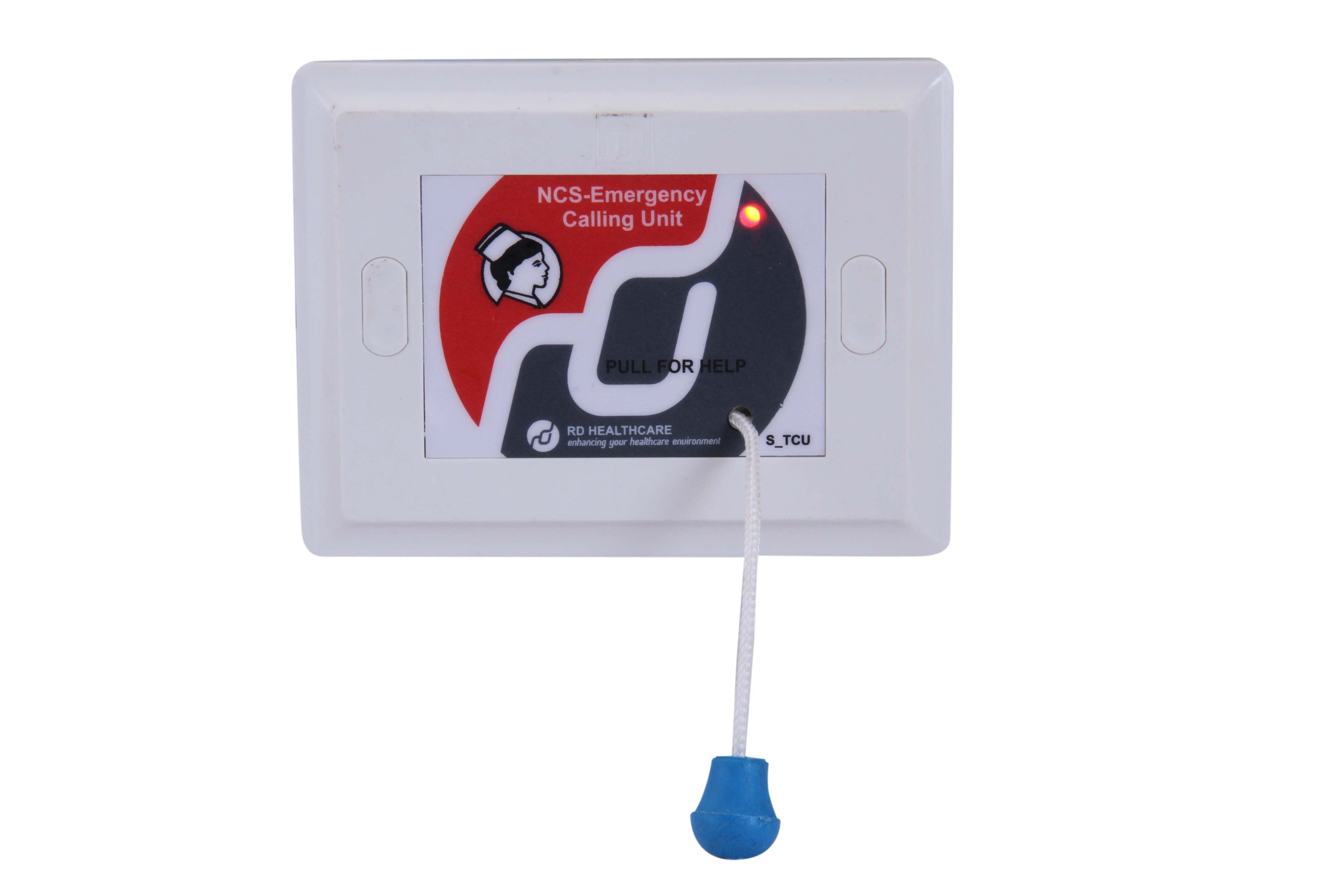

TOILET CALLING UNIT
- Flush mountable on wall or ceramic tile
- Water splash protected
- Mating connectors or brass screw terminals for incoming wires.
- Uses one pull cord switch toggling between ON and OFF whenever it is pulled
- Uses one indicating LED which flashes on a call initiation and becomes steady when call is acknowledged at the Nurse Station
- Uses both moar electric with outlet

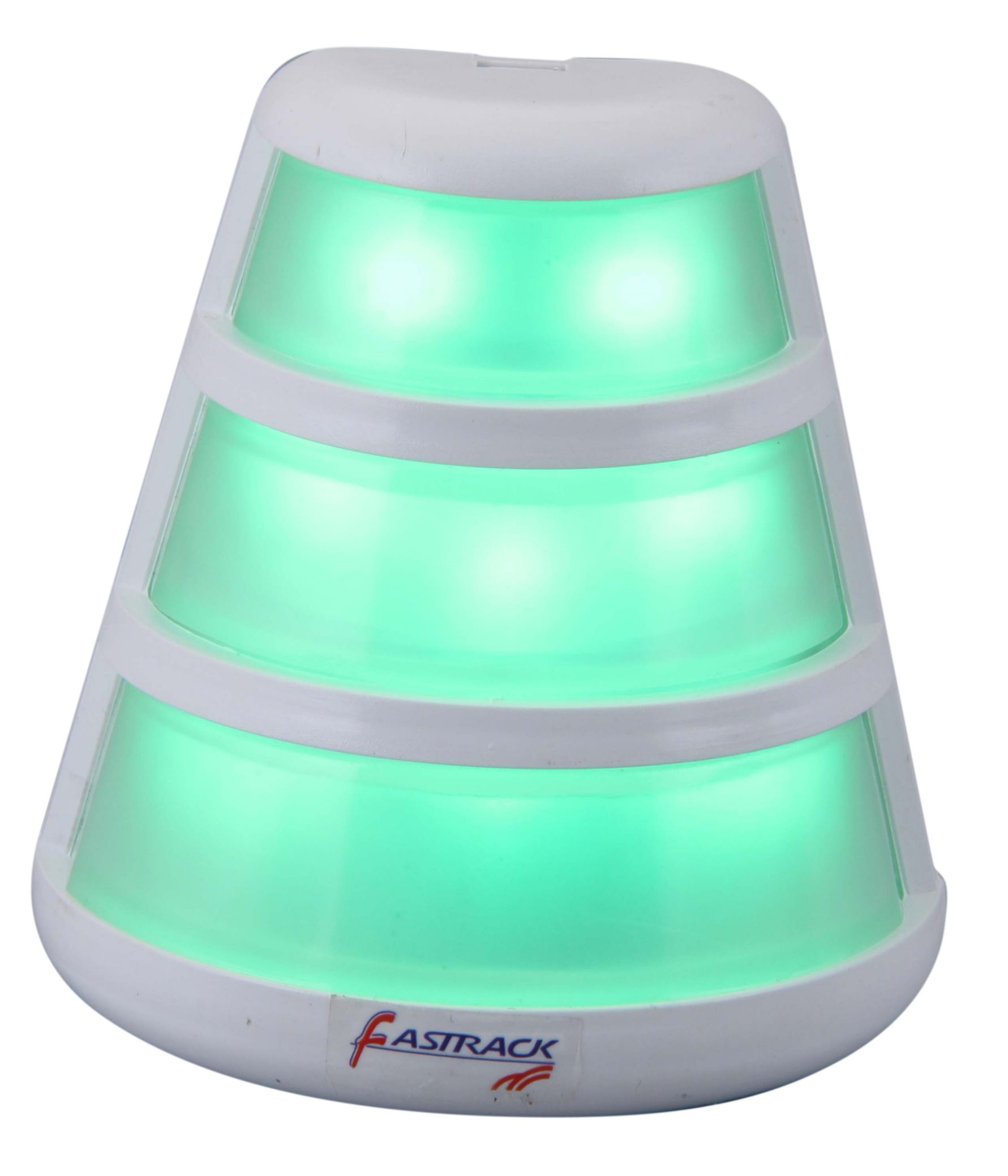

DOOR INDICATORS
- Wall or surface box mountable
- Houses two colours of super bright LEDs
- Uses a semi circular plastic housing
- Fetched less than 20mA of current
- Indicates both pending call and nurse presence
NUMEROUS OTHER FEATURES
- Nurse Help Request (NHR), which can be requested by the attending nurse from the patient's bedside.
- Code - Blue Alert (CBA), which is a Hospital emergency alarm which, when triggered from any bed-side, is indicated on all the nurse-station, throughout the hospital.
- Nurse Call Response Monitoring System (NCRM), which can be delivered either through a dedicated PC terminal or through the central server for the Hospitals' Information Management System.
- SMS Transmission Facility (SMS) which can transmit SMS under critical conditions to respective authorities.
- Smart Room Unit (USRU), it has inbuilt programmable timer for monitoring patient alertness, allows for setting 40 alarms to trigger automatic nurse call for applications like reminders for medicine, vaccination, treatment etc.
- Call forwarding during lean hours when limited staff is available.
- Call Escalation if pending for more than preconfigured duration.
- Duplication of information in corridor from multiple Nurse Station Display.
- All Nurse Station can be networked through Supervisory Controller to handle call forwarding. Call escalation through common large size LED Display.
TOKEN MANAGEMENT
Any successful establishment in the pursuit of providing services (S) will experience people gathered and waiting to be served. In such cases, it becomes essential to have some means of forming queues in an orderly fashion to ensure that people are served on first-come first-serve basis. It is definitely not desirable to form physical queues. Instead, everybody can be assigned a number (token) indicating their turn and allow them to estimate and manage the waiting time in their own way, without having to stand in a line.
The Token Management System is designed to address the above-mentioned requirement. This system helps in issuing a token, segregating the tokens for different services, routing them to proper service provider and enables the service provider to announce a token number chosen from a particular queue, both visually and aurally.
FEATURES
- Designed around RISC based micro controller with STAR topology reliability.
- Compact Token Calling Units with LCD display to reduce power consumption.
- Token Calling Units are designed to get powered by the data cable itself (does not need separate AC supply)
- The system is designed to be maintenance free
- The system can be configured to suit variety of establishments
- The Token Displays are designed with inbuilt voice module to announce the token number in two different languages
- Provision is made for auto printing of multiple copies of token
THE SYSTEM COMPRISES OF THE FOLLOWING MODULES: TOKEN HUB
This is the main module of the entire system which receives request from all the Token Dispensing Units and maintains one queue for every service. Similarly, it can maintain up to maximum of 8 service queues. It can get connected to a maximum of 15 dispensing units and accepts service requests from all of them. It can also get connected to a maximum of 15 Token Calling units and 15 Display units. On any of the Token Calling Unit requesting for a token to be called, the hub will determine from which queue it has to pick-up the token and put that token on the Token Display Unit and announce the token number in two different languages.
